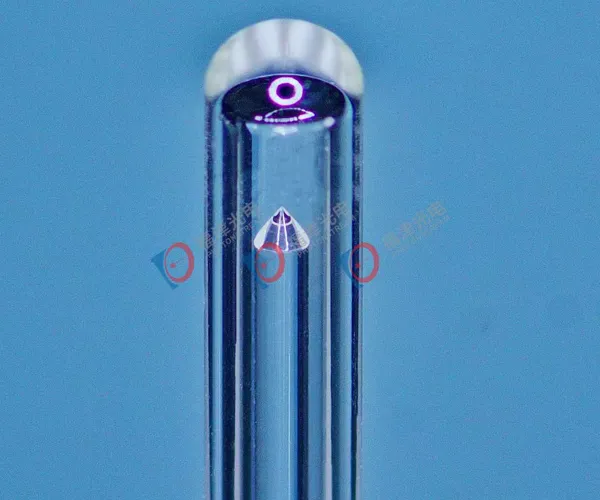

The radial emission fiber is designed to provide precise and homogeneous circumferential laser energy distribution for a wide range of medical laser applications. Its precision-engineered radial-emitting tip produces a uniform 360° emission pattern with a divergence angle of up to 120°, ensuring controlled energy dispersion and optimized treatment performance.
Uniform 360° radial emission
Standard SMA905 connector
Glass capillary-protected atraumatic tip
Length markings for accurate positioning
200/300/400/600um fiber available
Endovenous Laser Treatment (EVLT/EVLA)
Laser Hemorrhoidoplasty (LHP)
Fistula Laser Closure (FiLaC)
MECHANICAL DIMENSIONS | |
Buffer Diameter | 1mm |
Silica Capilary Dome Diameter | 1.8mm |
Total Length | 2-3m |
OPTICALCHARACTERISTICS | |
Emission Pattern | Ring-shaped |
Divergence Angle | 120° |
Power Handling | <60W |
OPTICALFIBER | |
Fiber Material | Silica |
Core Diameter | 200/300/400/600/800μm |
Cladding Diameter | 220/330/440/640/840μm |
Numerical Aperture | 0.37 |
Minimum Bending Radius | 80mm |
Fiber Connector | SMA905 |
CONDITIONING | |
Packaging | Double Pouch |
Dispenser | Individual Box |
Sterilization | STERILE/EtO |
USEFULLIFE | |
Reuse | Disposable |
ShelfLife | 2Years |
MISCELLANEOUS | |
Storage and Operation Temperature | .-50~125°C |
