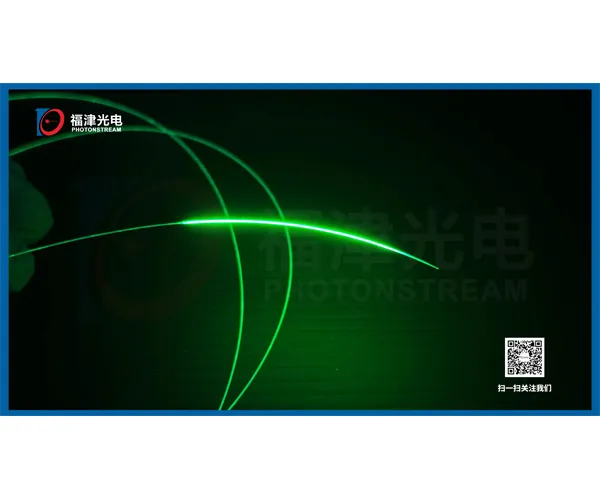

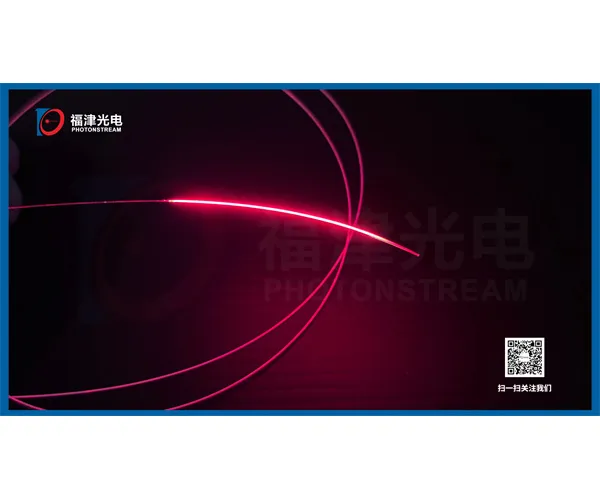

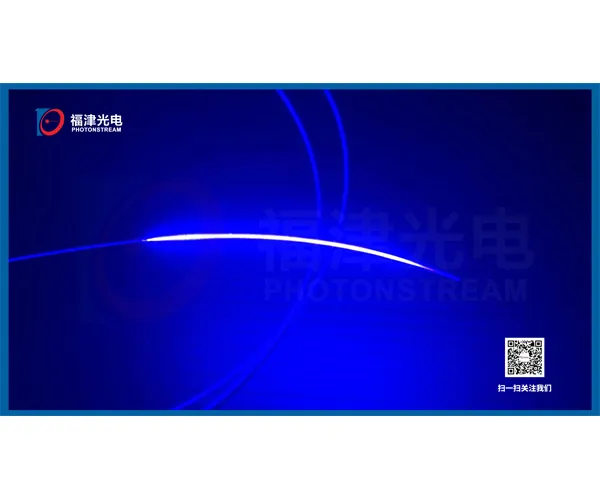

Plastic light-diffusing fiber uses a specially treated surface to scatter light evenly along its length, creating a smooth and soft glowing effect. Its thin, flexible design makes it ideal for medical tools like endoscopes and photodynamic therapy treatments.
Uniform Linear Illumination
Excellent Flexibility
High Safety Performance
Supports RGB Dynamic Color Changing
Compatible with Connectors for Replaceable Light Source
Endoscopic Illumination
Photodynamic Therapy

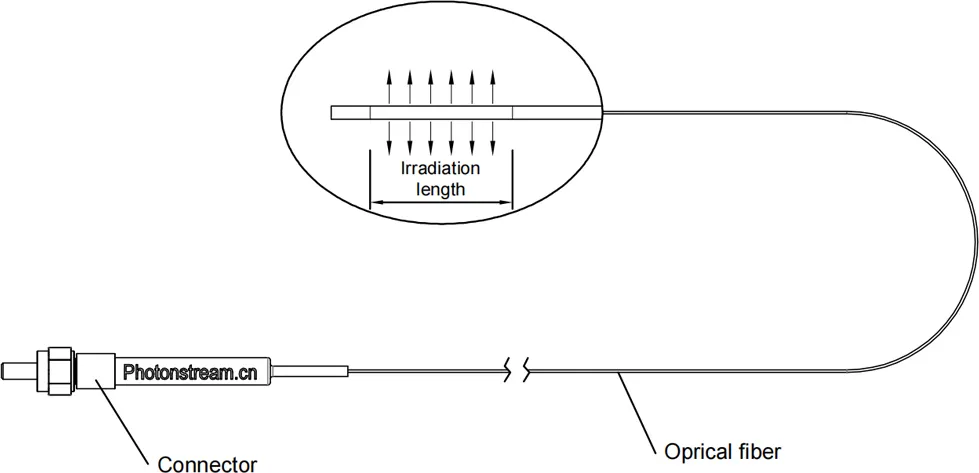

| MECHANICAL DIMENSIONS | |
| Overall Diameter | ≤ 1.0 mm |
| Overall Length | 3 m |
| Proximal Red Jacket Length | 0.1 m |
| OPTICAL FIBER | |
| Fiber Material | PMMA Resin |
| Core Diameter | 240 um |
| Cladding Diameter | 250~260um |
| Numerical Aperture | 0.4 |
| Minimum Bending Radius | 47 mm |
| Fiber Connector | SMA905 |
| OPTICAL CHARACTERISTICS | |
| Transmission（630-760 nm） | ≥ 80% |
| Illumination Length | 10, 20, 30, 40, 50 mm |
| Uniformity（630-760 nm） | ± 15% |
| Maximum Power Density（In air） | 0.5 W/cm (cw) |
| Maximum Input Power | 1.5 W (cw) |
